Orange Pi Lite H3 Quad-core
Orange Pi Lite H3 Quad-core 1.2GHz, WIFI, 512M RAM Ubuntu Linux Android mini PC Raspberry Pi 2 Compatible Read more

Sold out

62,46 €

Producer: na3D

Description

WIFI, 2 x USB, RAM 512M, HDMI, IR, MIC, CPU 1.2GHz 4 cores.

Orange Pi Lite Mini PC supports Ubuntu Linux Android and is compatible with Raspberry Pi 2
Orange Pi Lite H3 is a single board computer, supports Android 4.4, Ubuntu, Debian or Raspberry Pi image.

Excellent 4-core processor clocked at a frequency of 1.2G with 512M DDR3 SDRAM.

It is ideal for your 3D printer, computers, music and sound players and anything else, because it is open source.

Hardware specifications:

Processor

H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU
Mali400MP2 GPU @ 600MHz
It supports OpenGL ES 2.0
Memory (SDRAM)
512M DDR3 (shared with GPU)
Storage
TF card (max. 64 GB) / MMC memory card slot


Sew

Wireless WiFi connection only (2.4 GHz band)
Video input
Input connector for CSI Camera:
It supports 8-bit YUV422 CMOS sensor interface
Supports CCIR656 protocol for NTSC or PAL
Video support up to 1080p @ 30fps


Inputs

Microphone, Infrared sensor


Video outputs

Supports HDMI output with HDCP
Supports HDMI CEC
Supports HDMI 30 function


Sound output

HDMI
Energy source
DC input
Minimum 2A, Ideally 3A
The power supply is not included in the delivery
USB power is not supported
USB 2.0 ports
Two USB 2.0 HOST ports, one USB 2.0 OTG


T buttons

Power button
Peripherals
40 Pins Header, compatible with Raspberry Pi B +
GPIO (1x3) pin
UART, GROUND.
ICE
Power LED & Status LED
Type
POWER


Supported OS

Android Lubuntu, Debian, Raspberry Pi Image


Shipping information


Product dimensions 69mm x 48mm
Mass 36 g

Notice:
The product may require professional assembly, it is not an independently functional whole.

New product question

Captcha

i

Alternative products

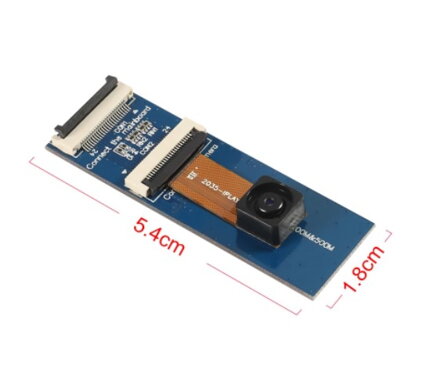

  • Wide Angle Lens Camera for Orange PI PC /PI One/PC Plus/Plus2e/Win/Win Plus/2G-IOT/Prime
