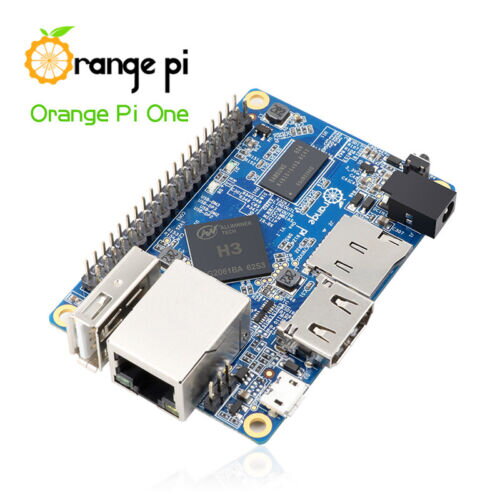

Orange Pi One H3 Quad-core
Orange Pi One H3 Quad-core 1.2GHz, 512RAM Ubuntu Linux Android mini PC Raspberry Pi 2 Read more

Sold out

55,27 €

Producer: na3D

Description

HDMI, LAN, USB, RAM 512, CPU 1.2GHz 4 cores.

Orange Pi One H3 Quad-core 1.2GHz specifications:

Orange Pi One is an open-source single-board computer, so it can be used e.g. for 3D printers, computers,
creating a home multimedia center, smart home, robot, etc.

Supports operating systems such as Android (Orange OS), Lubuntu, Debian 8, Fedora 22, Kali Linux, Arch Linux, Open Suse, Raspbian

Processor: H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU: Mali400MP2 GPU @ 600MHz
OpenGL ES 2.0 support
SDRAM: 2x256 MB DDR3 (shared with GPU)
Memory: TF card (max. 64 GB), MMC slot
Network: 10/100 Ethernet RJ45


Video input

CSI input connector
8-bit YUV422 CMOS sensor interface
protocol CCIR656 (NTSC/PAL)
Video support up to 1080p @ 30fps


Video output

Supports HDMI output with HDCP
Supports HDMI CEC
Supports HDMI 30 function

Audio output: HDMI
USB ports: 1x USB 2.0 HOST, 1x USB 2.0 OTG
Peripherals: 40-pin connector, compatible with Raspberry Pi B+

GPIO: UART
Buttons: 1x power button
LED indicators: Power, Status
Power supply External source 5 VDC, 2A
Dimensions (mm) 69 x 48
Weight (g) 36


Notice:
The product may require professional assembly, it is not an independently functional whole.
