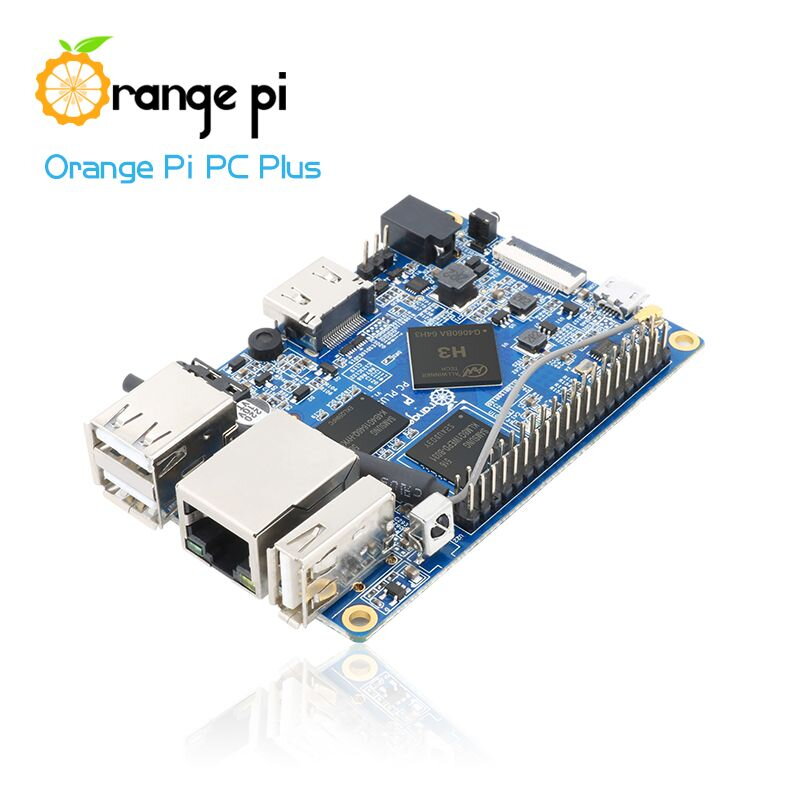

Orange Pi PC Plus H3 Quad-core 1.6GHz, 1GB RAM

Orange Pi PC Plus H3 Quad-core 1.6GHz, 1GB RAM

Orange Pi PC Plus H3 Quad-core 1.6GHz, WIFI, 1G RAM Ubuntu Linux Android mini PC Raspberry Pi 2. Read more

Sold out

85,06 €

Producer: na3D

Description

Single board computer. WIFI, LAN, 8G FLASH, 3 x USB, RAM 1G, HDMI, LAN, IR, AUDIO, MIC, CPU 1.6GHz 4 cores. Orange Pi PC is a compatible open-source minicomputer for Raspberry PI

Hardware description:

Processor: H3 Quad-core Cortex-A7 H.265/HEVC 4K?
GPU: Mali400MP2 GPU @ 600MHz., Does it support OpenGL ES 2.0?
Memory (SDRAM): 1GB DDR3 (shared with GPU)
Storage: TF card (max. 64GB) / 8GB EMMC Flash
Network: 10/100M Ethernet
Video input: Input connector for CSI Camera:
It supports 8-bit YUV422 CMOS sensor interface
Supports CCIR656 protocol for NTSC or PAL
Video support up to 1080p @ 30fps
Inputs: Microphone, Infrasensor
Video outputs:
Supports HDMI output with HDCP
Supports HDMI CEC
Supports HDMI 30 function
Audio output: HDMI, 3.5mm jack
Power source: DC input, Minimum 2A, Ideally 3A
USB 2.0 ports: Three USB 2.0 HOST type, one USB 2.0 OTG
TButtons: Power button
Peripherals:
40 Pins Header, compatible with Raspberry Pi B +
GPIO (1x3) pin
UART, GROUND.
ICE
Power LED & Status LED
Supported OS: Android Lubuntu, Debian, Raspberry Pi Image


Shipping Information:

Product dimensions: 85 mm x 75 mm
Weight: 70g

The power supply is not included in the delivery
USB power is not supported

Notice:
The product may require professional assembly, it is not an independently functional whole.
