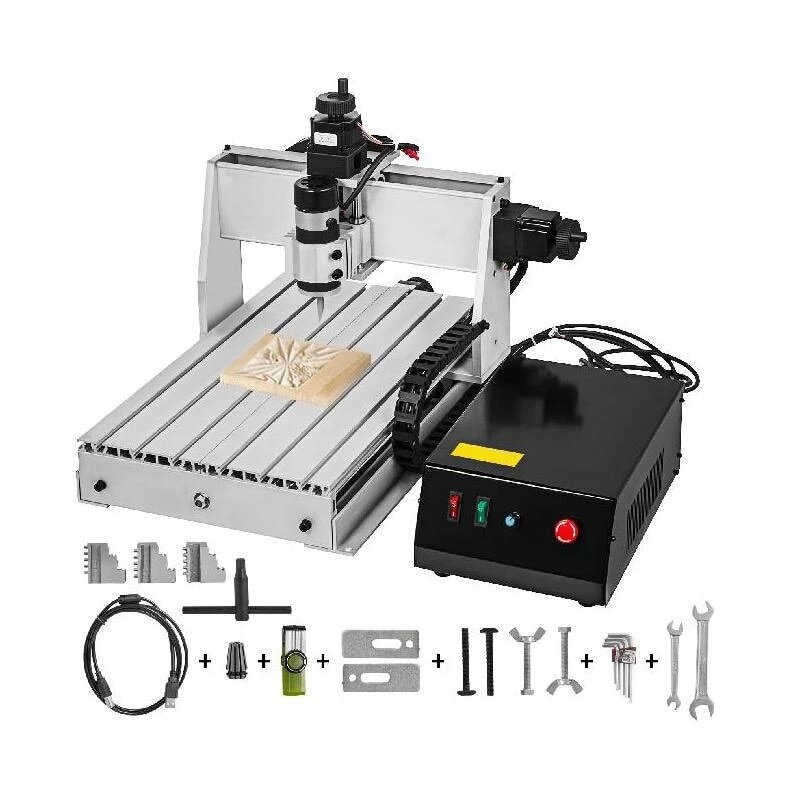

CNC milling machine - milling machine tool 3040 / 6040 4 axis CNC

CNC milling machine - milling machine tool 3040 / 6040 4 axis CNC

CNC machine tools use tools for milling, drilling or turning, but they differ from classic machine tools in the operator system. The predecessor of advanced CNC machines was a classic model that operated according to programmed commands. Today, the control unit is a computer, which can realize even demanding shapes or precise details. CNC machining centers are mainly intended for hard materials, but also for the production of custom parts or prototypes. CNC machines process ferrous and non-ferrous metals, but also plastic. It can also process rubber or graphite. Read more

Dimension

Up 2 weeks

913,42 €

Producer: na3D

Description

3040 4 axes

  • Working space: 275 (X) mm * 385 (Y) mm * 60 (Z) mm
  • Shape size: 610x480*400mm
  • Max. dimensions of the workpiece: 70 mm
  • Work table size: 320 mm * 530 mm
  • Carving depth: 55 mm
  • Frame materials: 6063 and 6061 aluminum alloy
  • Movement screw: 1204 double thread trapezoidal screw
  • XY axes: bars diameter 16 mm made of hardened steel
  • Z-axis: bars diameter 12 mm made of hardened steel
  • Stepper motor type: nema57 two-phase 1.8A
  • Spindle motor: 200W DC motor 500~8000rpm
  • Spindle Collet Size: ER11 /3.175mm
  • Repeat accuracy: 0.05mm
  • Spindle accuracy: radial runout 0.03 mm
  • Control unit: 3-axis control board + ring for variable power setting + PWM regulation
  • Supported file types: G-code/.tab /.nc / .ncc/.txt
  • Communication interface: via parallel or USB connection to a computer
  • Supported Software: All
  • Maximum movement speed: 0-4000mm/min
  • Machining speed: 300-2500 mm/min (different materials vary)
  • Package size: 60 * 50 * 40 cm
  • Package weight: 26 KG

6040 4-axle

  • Working space: 580 (X) mm * 400 (Y) mm * 65 (Z) mm
  • Shape size: 870*670*520mm
  • Max. material thickness: 100 mm (distance between the Z axis and the bottom of the workstation)
  • Max. workpiece size: 750mm*450mm
  • Work table size: 750 mm * 480 mm * 20 mm
  • X-axis: rod diameter 16mm made of hardened steel
  • Y-axis: rod diameter 20mm made of hardened steel
  • Z-axis: rod diameter 13mm made of hardened steel
  • Stepper motor type: nema57 two-phase 3A, super low noise
  • Spindle motor: 1.5 kW water cooled
  • Spindle collet size: ER11/3.175
  • Spindle speed: 24000 rpm. (PWM stepless regulation)
  • Control unit: 3-axis control board + ring for variable power setting + PWM regulation
  • Supported file types: G-code/.tab /.nc / .ncc/
  • Communication interface: via parallel or USB connection to a computer
  • Package size: 87 * 68 * 51 cm
  • Package weight: 48 kg

Photos are for illustrative purposes only.

CNC milling machine - milling machine tool 3040 / 6040 4 axis CNC
CNC milling machine - milling machine tool 3040 / 6040 4 axis CNC

913,42 €
