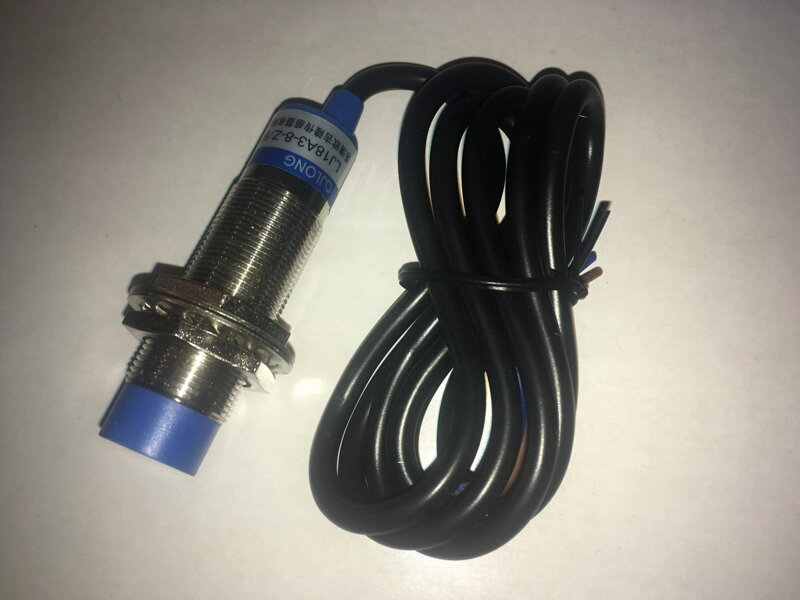

Induction proximity sensor LJ18A3-8-Z/BX

11,32 € 0%

Induction proximity sensor LJ18A3-8-Z/BX

Sensor 8 mm detection distance. The sensor indicates the detection of the object by the appearance of the low state at the output and activation of the red LED. The sensor is equipped with a cable with a length of about 1m and a nut for easy assembly. The sensor is equipped with a cable with a length of about 1 m and a nut for easy assembly. The sensor tightness class is IP67. The power range is from 6 V to 36 V. Read more

Sold out

Delivery date:

11,32 € incl. VAT Discount

11,32 €

Quantity discounts

pcs and more: /pc

Add to Favourites

You need to login first

Close

Product question

You need to login first

Close

Producer: na3D

Description

Description

power voltage: DC from 6 to 36V
range (operating zone): 8 mm
working temperature: -25 ° C+ 75 ° C
type of housing: M18 cylindrical
case material: metal
insulation resistance: & gt; 50mom
standard detected object: metal
type of output: 3-water DC npn no (normally open)
signaling: LED
head diameter: 16.5 mm
resistance class: IP67
sensor length: o 70 mm
output signal: Digital 300 MA

Warning:

Product may require professional assembly, not separately functional.
