CNC Shield

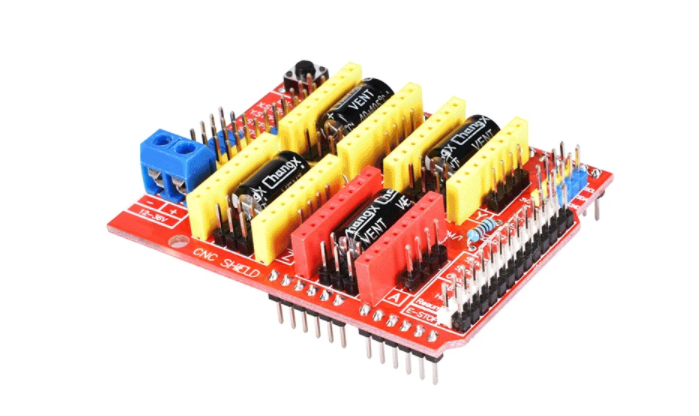

Control plate for modeling CNC machines. The board can be used as an extension to multiple 3D printer control boards. CNC Shield is available in the Uno and Nano variant. Read more

In stock >10pcs

4,13 €

Producer: na3D

Material: aluminum

Version for uno:

  • Grbl 0.9 Compatible. (Open Source Firmware that runs on UNO for Arduino that changes G-Code commands to step signals)
  • Pwm spindle and directional pins
  • Support 4 OS (X, Y, Z, A-M, duplicate x, y, z or make the entire 4th axis using your own firmware using pins D12 and D13)
  • 2 x End stops for each axis (6)
  • Release of the coolant
  • Uses removable step drivers compatible with A4988 or DRV8825
  • Micro-stepping jumpers for step drivers. (Some drivers such as DRV8825 can perform up to 1/32 micro -products).
  • Compact design.
  • Step motors can be connected using 4 -wheeled Molex connectors or soldered on site.
  • runs at 12-36V DC. (At the moment, only DRV8825 drivers can handle up to 36V, so please consider the operating voltage when the board is powered.)
  • Please note that it is an unspecified set and the basic soldering skills are necessary.



Version for nano:

  • Adapted for Cartesian coordinate system
  • Can be expanded with various accessories
  • Contains 3 slots for step -by -step drives
  • Output current: 2 and
  • Input voltage: 12 V
  • Dimensions: 72 x 58 mm





Warning:
The product may require professional assembly, not a separate functional total.
