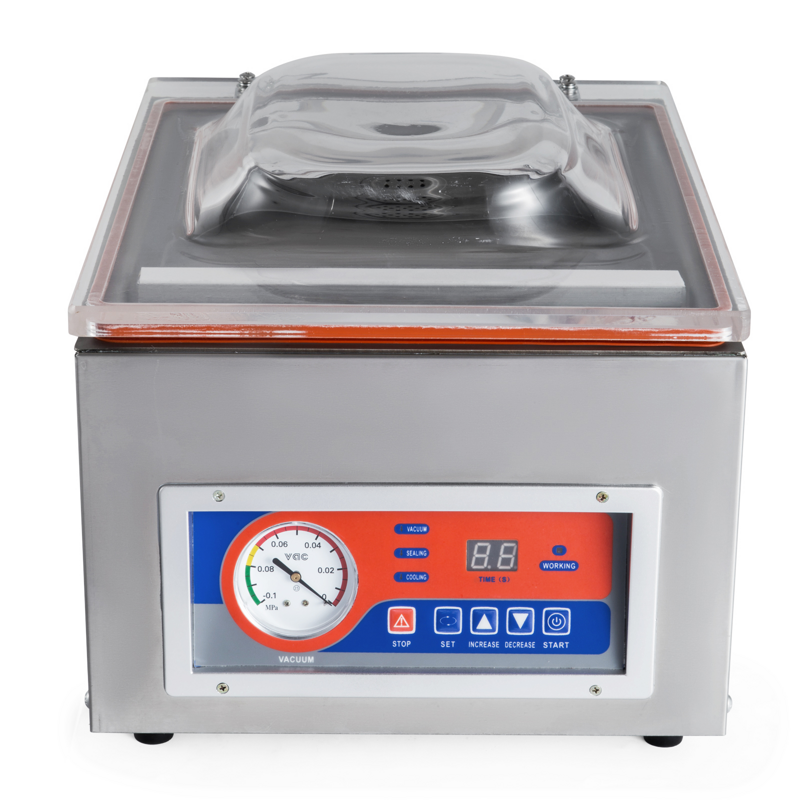

Vacuum 120 W 260 mm Welding bar

NEW

Vacuum 120 W 260 mm Welding bar

Table stainless steel vacuum culmination is suitable for vacuuming and burning unpacked coils with filament and other products. Closed products have a longer service life and are more resistant to external influences, such as moisture. The vacuum process is very simple and everyone can handle it. The product can only be ordered with a personal collection, it is not possible to send it! Read more

On demand

374,96 €

Producer: na3D

Description

Is closed, the air suction starts.

  • After a short hold of the lid, the lid is sealed by the pressure and the process is further automated.
  • After completion of the exhaust (according to the set time sequence) begins welding the bags (again the time interval must be set).
  • After welding is followed by the process of cooling the sealed joint that is important for sufficient curing of the weld.
  • After curing, the air is filled back into the chamber. At this stage there will be a visible shrinkage of bags under the influence of the differences in the ambient pressure and the bag itself.
  • After the air is filled, the chamber lid opens itself.



Properties:

  • Model: 260s
  • Power: 120 W
  • Compressor power: 5.5 l/min
  • Welding bar length: 260 mm
  • Weld thickness: 10 mm
  • Material: stainless steel
  • Current: 5 and
  • Shower speed: 2 cfm
  • Air supply hole: 6 mm
  • Noise: & lt; 80db
  • Lowest absolute pressure: ≤ 1 kpa
  • Package speed: 1-4 pcs/min
  • Chamber Dimensions: 330 x 275 x 50 mm
  • Device dimensions: 405 x 320 x 340 mm



If the product is in the "order" state, it takes about 2 weeks of delivery. The product can only be ordered with personal collection, sending only by individual agreement.



Warning:

Vacuum bags are not included.
