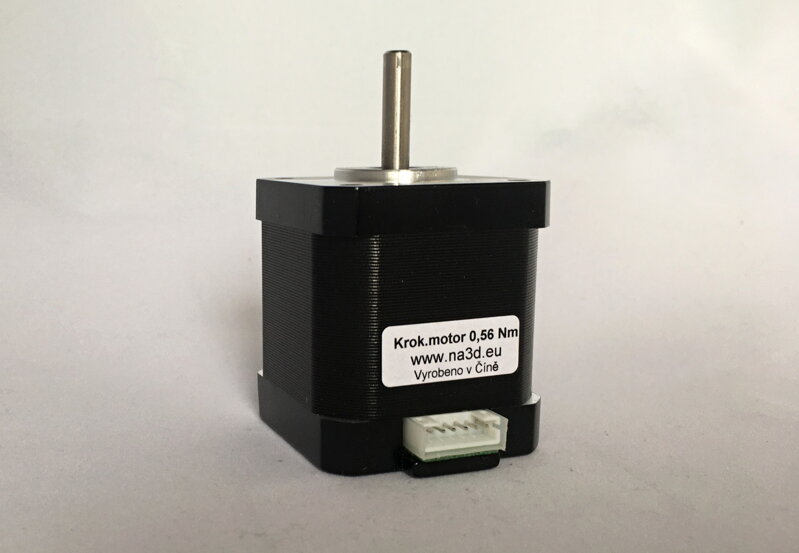

Step motor 0.56 nm
The 0.56nm stepper engine serves as an alternative replacement for SX17-1005VLQCEF engines. The engine is suitable for use on all axes. Read more

Sold out

11,21 €

Producer: na3D

Description

The engine can be supplied with a cable with a DuPont connector (RAMPS) or with the JST XH connector (MKS boards, etc.)

Supplied without a cable. JST XH cable order here  and DUPONT cable here



Flange: Nema 17

Engine height: 48 mm

Step: 1.8 °

Weight: 0.36 kg

Warning:
The product may require professional assembly, not a separate functional total.
