Thread insert M2 M3 M4

Dimensions:

• m2: 2x4x3.5 mm - M2 thread, 4 mm length, 3.5 mm outer max. Diameter
• m3: 3x5x5 mm - M3 thread, 5 mm length, 5 mm outer max. Diameter
• M4: 4x5x6 mm - M4 thread, 5 mm length, 6 mm outer max. Diameter

- special shape for perfect hold
- light mounting
- for many plastic
- high quality brass

Installation takes place in five simple steps:

• Place the threaded insert into the hole of the component
• Heat the threaded insert (preferably to filament hotend temperature)
• Insert the threaded insert into the appropriate hole
• Allow the part to cool to ensure final strength
• A soldering iron is required to assemble the threaded inserts.

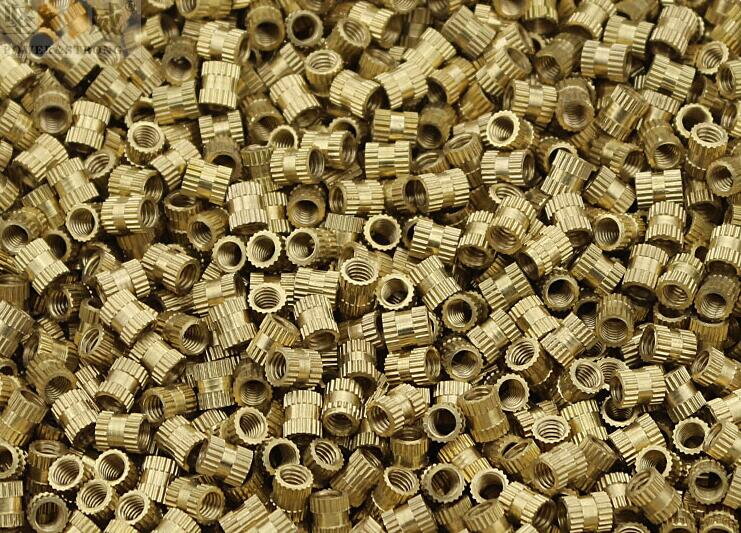

(Product can be ordered after 1 piece, photo is only illustrative.)
