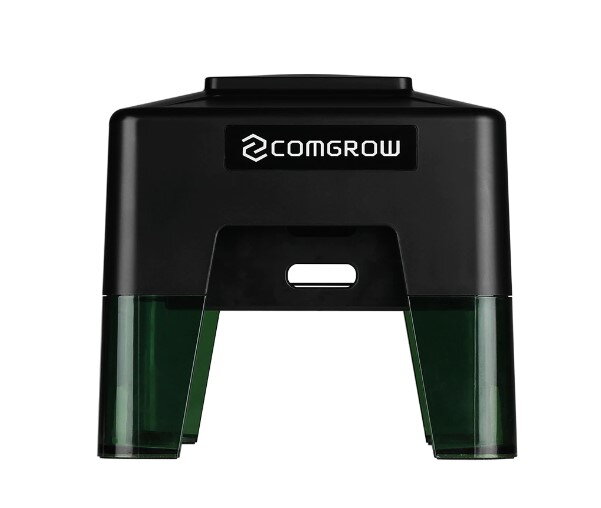

Mini laser engraver
The mini laser engraver is bottomless, and thanks to the massive body (which appears to you already completely assembled), you can engrave even larger objects. The engraver thus represents a very flexible, simple and fast solution for engraving a wide range of materials. A logo or image can be engraved on wood (from plywood to solid oak), plastic, leather, paper or rubber. Mini laser engraver with a laser protective cover (in the front) with an ultraviolet light filter efficiency of up to 97%. Read more

In stock <10pcs

255,26 €

Description

Specifications:

  • The entire assembly process takes less than 2 minutes, simple connection and convenient operation.
  • Manual focusing of the focal length of the laser with an adjustable range of 30-100 mm.
  • Simple operation of the mobile application.
  • The whole structure of the machine uses an integrated mold opening scheme, with a smooth and delicate appearance, all on a stable structure with convenient operation.
  • Equipped with a laser protective cover, the speed of the ultraviolet light filter can reach 97%, so the engraving can be viewed without protective glasses.
  • Bluetooth connection
  • You can download the software and English manual and sample pictures for engraving here.

Parameters:

Product size 185*183*171 mm System PC:Windows XP、7、8、10、Mac OS
Smartphone: Android 9.0+, IOS10+
Package size 235*235*165 mm Supported file format bmp/.jpg/.png/.TIFF/.PCX/.PCD
Net weight of the machine 0.9 kg Laser wavelength 445±5 nm
Total weight of the package 1.45 kg Maximum laser power 1.6 W
Engraving speed 1000 mm/min Engraving area 98*88 mm
Electrical energy 24 W Certificates FCC/CE/FDA
Laser head performance 1.6 W Engraving material Wood/bamboo/cardboard/plastic/
leather / acrylic / glass / coated metal*,
etc
MCU 32 bit MCU Engraving/cutting material wood 1 mm/carton

Package contains:

  • Engraver
  • USB flash drive (software)
  • Protection panel
  • Data cable
  • 2x wooden plate
  • Power source

*The engraver does not engrave metal, but only layers of paint or anodized.
