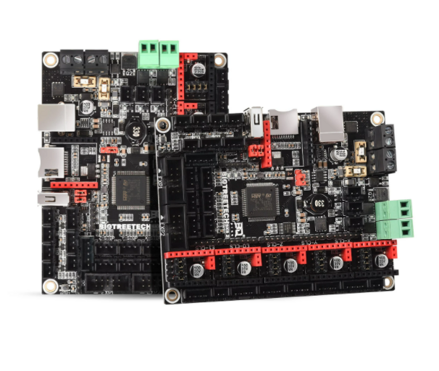

- Material: 4-layer PCB
- Microprocessor: CPU ARM Cortex-M3-LPC1768-100MHz
- Input voltage: DC12V-DC24V, 5A-15A
- Plate size: 110 x 85 mm
- Mounting size: 102 x 76 mm
- Support for WiFi module ESP-01S
- Supported displays: TFT3.5, TFT2.8, 2004LCD, 12864LCD
- Supported drivers: TMC5161 / TMC5160 / TMC2209 / TMC2225 / TMC2208 / TMC2130 / TMC2100 / ST820 / A4988 / DRV8825 / LV8729
- Driver working mode: STEP / DIR, TMC2208-UART, TMC2130-SPI
- Temperature sensor interface: Th0, Th1, TB, 3 -channel 100K NTC (thermal resistance)
- File format: G-code
- Support Machine Type: XYZ, Delta, Kossel, Ultimaker, Corexy
- Use for: 3D printer, CNC
Instructions and firmware from the board manufacturer can be found here.
The product may require professional assembly, not a separate functional total.
