Control plate - BIGTRETRETECH E3 RRF v1.1

Control plate - BIGTRETRETECH E3 RRF v1.1

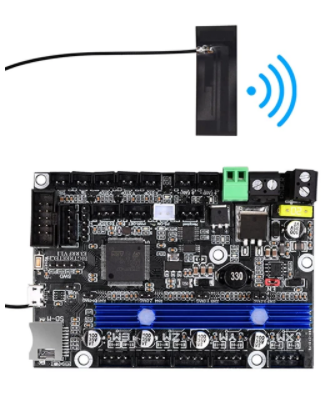

32 -bit Bigtreech E3 RRF V1.1 with WiFi with integrated Drivers TMC2209. The control board is designed for 3D printers Ender 3/5 for Read more

In stock <10pcs

99,96 €

Producer: BIQU

Description

Developed by the BIGTREETECH team, the E3 RRF V1.1 control board is tailored specifically for the Ender3 series printers, perfectly replacing the original Ender3 series printer motherboards. It also has a high-performance main control chip.

Advantages:

1. ARM Cortex-M4 STM32F407VGT6 processor with a frequency of up to 168 MHz

2. The AO1284 power supply chip mastery of 12/24 V and maximum load up to 4 A, greatly reduces the ripping of waves and disturbing interference

3. Integrated WiFi module ESP8266: ESP3D with Marlin & amp; DWC with Reprapfirmware

4. Prepared KONEKTROY: Auto -Leveling, Micro USB, 2 controlled fans, RGB lighting, power recovery, off printing after printing, filament sensor - end detection

5. Safer design, better protection







product specification:



size: 100.75*70.25mm

plate layer: 4 layers

MCU: ARM Cortex-M4 STM32F407VGT6

Power supply: DC 12/24V

Logical voltage level: 3.3V

engine drive: uart mode TMC2209

motor drive interface: xm, ym, zam, zbm, em

Temperature sensor interface: th0, thb, 2 channels 100K, NTC (thermal resistor)

display: All touch screens (AUX-1/TFT connector), original LCD12864 Ender 3 (Exp-3 connector)

Communication interface for PC: micro USB, easy connection, transfer rate of communication 115200

supports file format: g-code

Recommended Software: Cura, Simplify3D, Pronterface, Repetier-Host, Makeware







Warning:
Product may require professional assembly, not separately functional in total.
