Photopolymer Printer L120

Photopolymer Printer L120

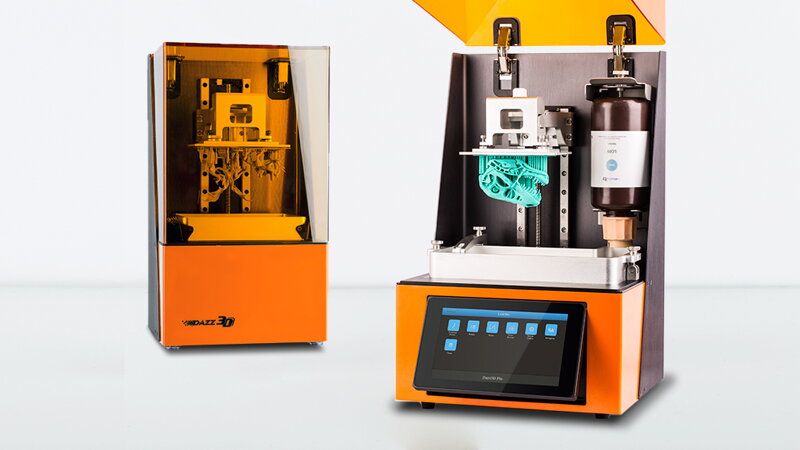

The Dazz L120 stereolithographic printer is a professional LCD printer with a 120 x 68 x 150 mm printing area.

Product variants

  • 1457,92 € incl. VAT

  • 2257,92 € incl. VAT

1457,92 € incl. VAT

Producer: Dazz

Basic alt = "for" />



Basic

for

technology

LCD - SLA

LCD - SLA

printer size

175 x 220 x 386 mm

265 x 214 x 409 mm

print volume

120 x 68 x 150 mm

120 x 68 x 150 mm

xy resolution

0.047 mm

0.047 mm

from the resolution

0.01 mm

0.01 mm

layer height

0.025; 0.03; 0.05; 0.1 mm

0.025; 0.03; 0.05; 0.1 mm

printing speed

to 36 mm/hr

to 36 mm/hr

Weight of printer

6.5 kg

12.5 kg

touch screen

-

7 inch

Resin filling system

Manual

automatic

air cleaning

-

Yes

Resin wiper

-

Yes

curing LCD

2K, 48W, 405 nm, UV LED

2K, 48W, 405 nm, UV LED

Resin tank

FEP Film in aluminum frame

FEP Film in aluminum frame

Connectivity

Wi-Fi, Ethernet, USB

Wi-Fi, Ethernet, USB

alignment of the pad

automatic

automatic

Resiny

Dazz and Resiny of third parties

Dazz and Resiny of third parties

operating system

Windows, Mac

Windows, Mac

consumption

AC 220V 2A - DC 24V 2.5a

AC 220V 2A - DC 24V 2.5a
