Description
Specifications:
- The entire assembly process takes less than 2 minutes, simple connection and convenient operation.
- Manual focusing of the focal length of the laser with an adjustable range of 30-100 mm.
- Simple operation of the mobile application.
- The whole structure of the machine uses an integrated mold opening scheme, with a smooth and delicate appearance, all on a stable structure with convenient operation.
- Equipped with a laser protective cover, the speed of the ultraviolet light filter can reach 97%, so the engraving can be viewed without protective glasses.
- Bluetooth connection
- You can download the software and English manual and sample pictures for engraving here.
Parameters:
| Product size | 185*183*171 mm | System | PC：Windows XP、7、8、10、Mac OS Smartphone: Android 9.0+, IOS10+ |
| Package size | 235*235*165 mm | Supported file format | bmp/.jpg/.png/.TIFF/.PCX/.PCD |
| Net weight of the machine | 0.9 kg | Laser wavelength | 445±5 nm |
| Total weight of the package | 1.45 kg | Maximum laser power | 1.6 W |
| Engraving speed | 1000 mm/min | Engraving area | 98*88 mm |
| Electrical energy | 24 W | Certificates | FCC/CE/FDA |
| Laser head performance | 1.6 W | Engraving material | Wood/bamboo/cardboard/plastic/ leather / acrylic / glass / coated metal*, etc |
| MCU | 32 bit MCU | Engraving/cutting material | wood 1 mm/carton |
Package contains:
- Engraver
- USB flash drive (software)
- Protection panel
- Data cable
- 2x wooden plate
- Power source
*The engraver does not engrave metal, but only layers of paint or anodized.

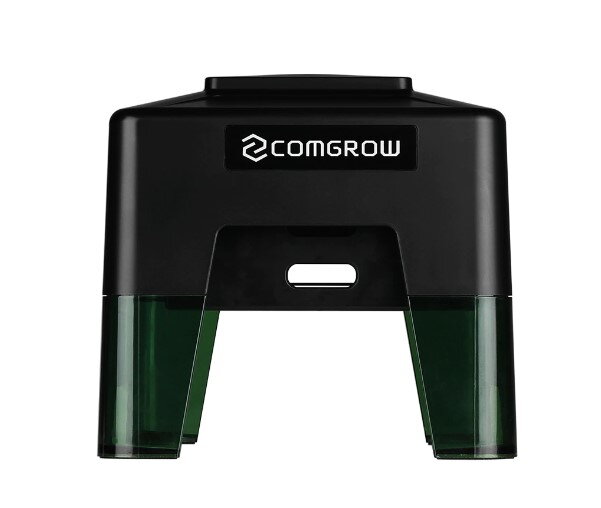

Mini laser engraver
255,26 €
